Bunker Ship

EBDG designed this highly versatile, self-propelled bunker ship for the transportation and delivery of fuel and lube oil for Maxum Petroleum. The 150,000-gallon bunker ship, GLOBAL PROVIDER was built at Jesse Co., a Washington State fabricator. GLOBAL PROVIDER is designed to move segregated products in a single trip, without cross-contamination. This vessel was designed, built and operates in the Pacific Northwest.

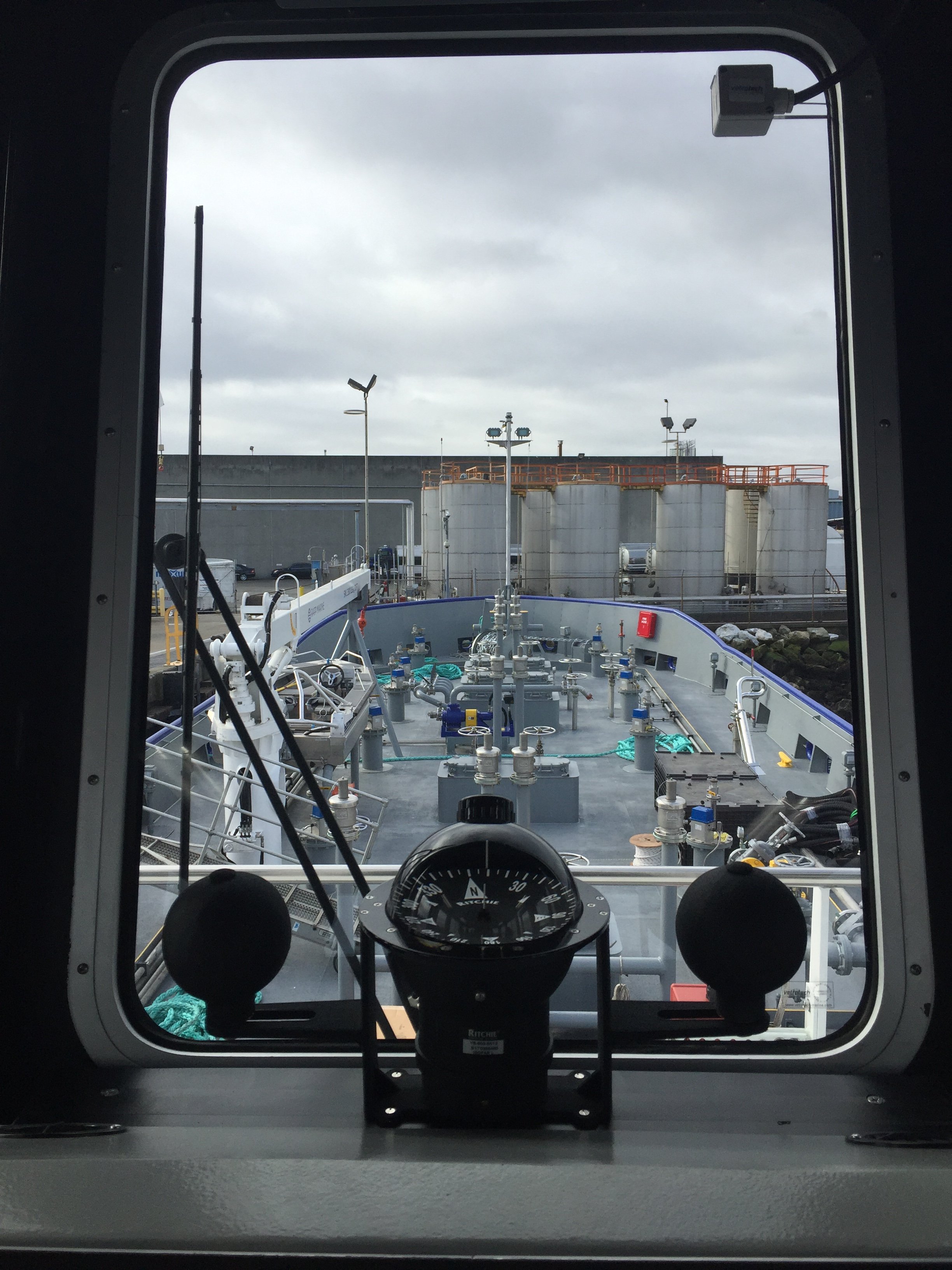

GLOBAL PROVIDER from the Wheelhouse

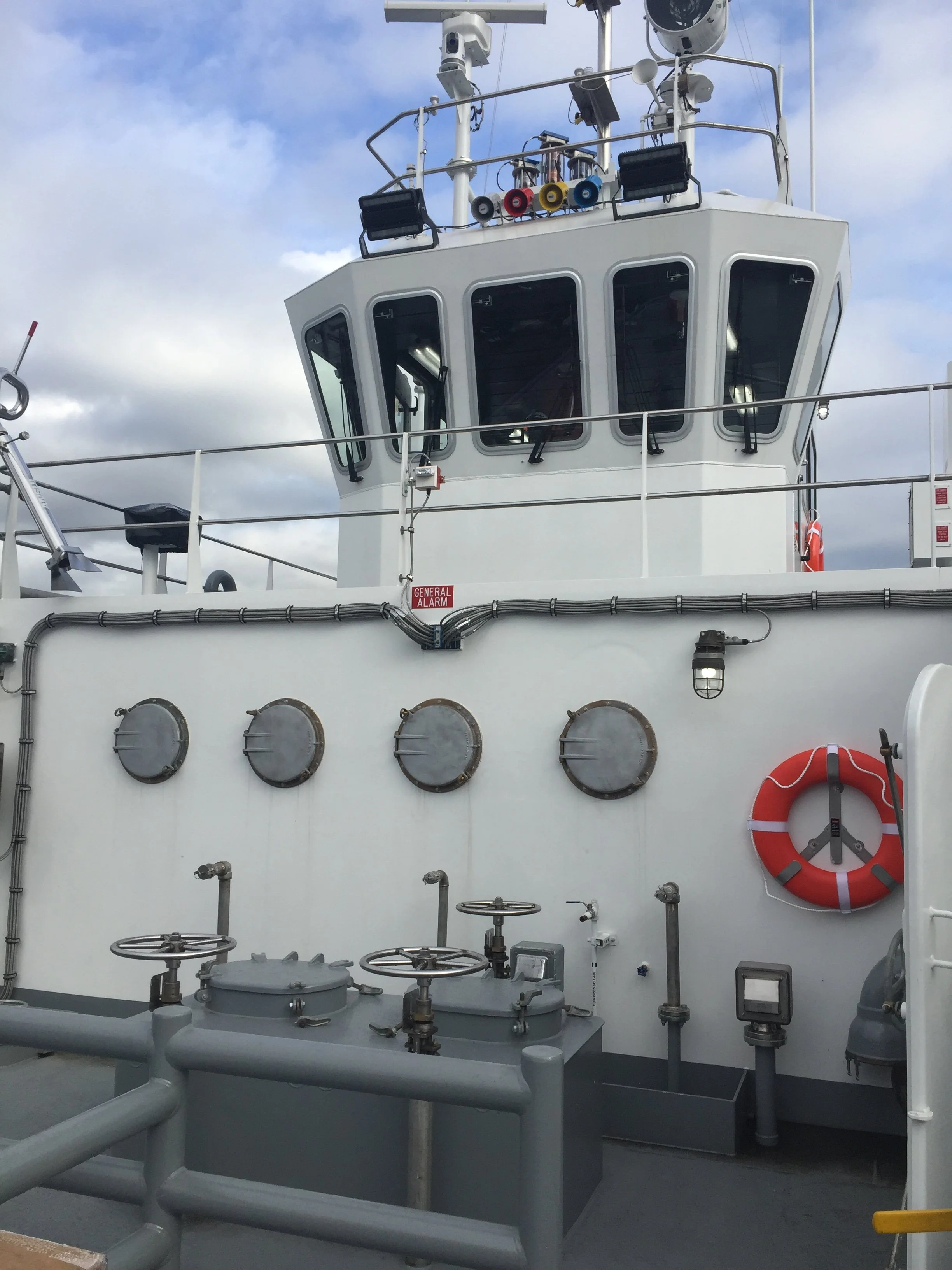

GLOBAL PROVIDER Wheelhouse

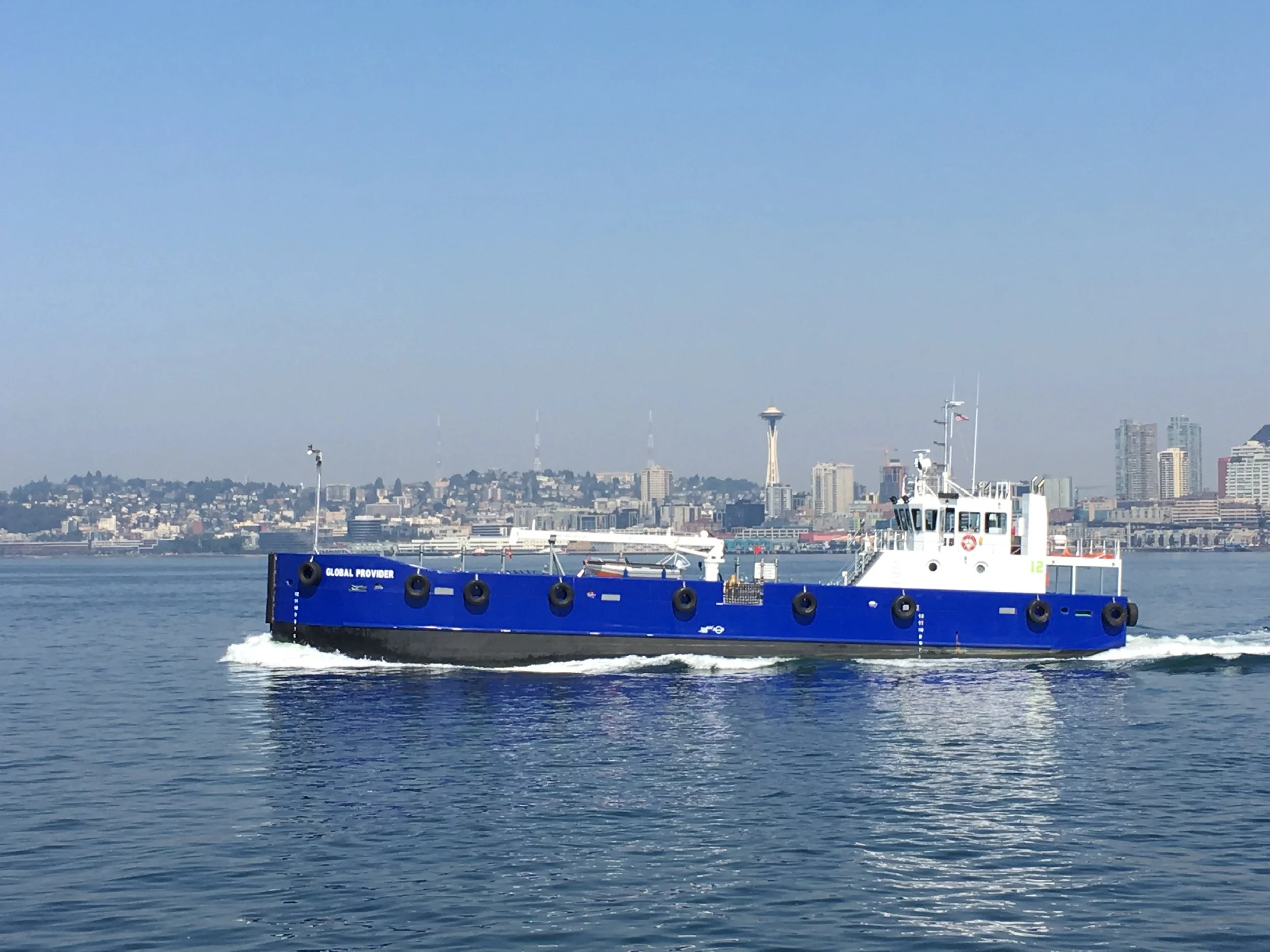

GLOBAL PROVIDER in transit
GLOBAL PROVIDER rendering
GLOBAL PROVIDER
GLOBAL PROVIDER Rendering 2

EBDG’s Scope

EBDG's project scope included concept and contract design, vessel renderings, and regulatory support to obtain United States Coast Guard (USCG) approval and loadline certification from American Bureau of Shipping (ABS). During construction, EBDG continued to support the client with detail design, production support services and with weekly shipyard visits to ensure design plans were translated into a quality-built vessel that would meet and exceed the client's operational requirements.

Vessel Particulars

Maxum Petroleum

126’ - 2”

32’

USCG & ABS

150,000 gallon

Owner:

Length:

Beam:

Regulatory:

Capacity:

Design Features

The GLOBAL PROVIDER has a carrying capacity of 151,500 gallons and is equipped with a cargo handling system featuring six pairs of cargo tanks. The vessel is powered by (2) Cummins QSK-19M, 660 HP Tier III engines and is equipped with twin disk model MGX-5202 reduction gears that drive two fixed pitch propellers. Electrical power is supplied by Northern Lights Gensets, and Auto-Nav's electro-hydraulic steering system serves Deflector Marine Rudders.

The onboard systems and state of the art technology make the GLOBAL PROVIDER a highly versatile vessel, including capability for emergency and oil spill response. The vessel is equipped with a FLIR thermal imaging system, giving the crew complete visual ability in darkness, fog and smoke. Firefighting capabilities include two Ansul 4-inch foam monitors and a 300-gallon tank for fire-fighting foam. Deck gear includes a 2,800-pound capacity Rapp Marine hose handling crane that can also be used for skiff and boom deployment or to assist in skimming operations. The vessel can be used as floating storage during skimming and recovery. Additional onboard emergency safety and rescue equipment includes a Jason's Cradle man-overboard rescue system.
